Adaptive Loading - Improving the UX for billions on low-end devices

Adaptive Loading is a web performance pattern where sites not just respond based on screen size - they adapt based on actual device hardware.

Any user can have a slow experience. In a world with widely varying device capabilities, a "one-size" fits all experience may not always work. Sites that delight users on high-end devices can be unusable on low-end ones, particularly on median mobile and desktop hardware and in emerging markets. What if we could adapt how we deliver pages to better cater for our user's constraints?

https://addyosmani.com/blog/adaptive-loading/
https://web.dev/adaptive-loading-cds-2019/
Video: https://youtu.be/puUPpVrIRkc

Transcript

1. Addy Osmani Chrome @addyosmani Adaptive Loading Improving the UX for billions on low-end devices Nate Schloss Facebook @n8schloss
2. Any user can have a slow experience.
5. Respect the user’s and
6. Smartphone hardware varies CPU Memory Storage Screen Battery

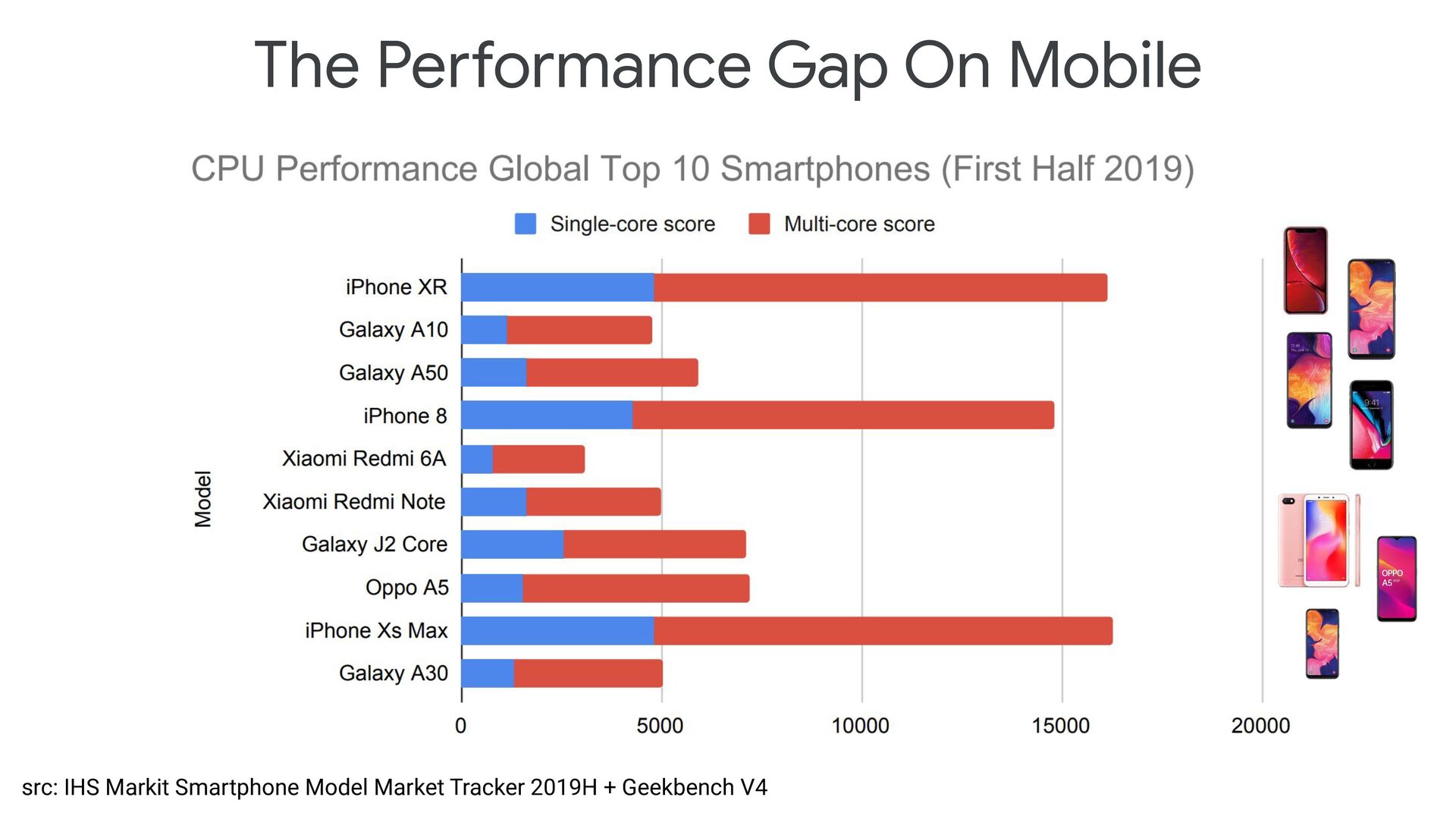

7. The Performance Gap On Mobile src: IHS Markit Smartphone Model Market Tracker 2019H + Geekbench V4
8. If you want to build a fast site, use slow hardware
9. The Performance Gap On Desktop src: Amazon (bit.ly/bestsellinglaptops - November, 2019) + Geekbench V5, @addyosmani Highest selling laptops on Amazon (2019) CPU performance using Geekbench 5
10. Do we need to deliver the exact same experience to every user?
11. Adaptive Loading
12. Demo
13. Demo Open demo
14. Fine-tune Data Transfer Use less bandwidth on slow connections Respect Data Saver preferences Reduce memory use on low-cost devices Optimize loading of memory-intensive resources Toggle memory-intensive animations Limit costly JavaScript on low-end devices Avoid loading CPU-heavy components Reduce CPU-intensive code execution Network Memory CPU
15. Adaptive Loading React Hooks bit.ly/react-adaptive Experimental
16. Adaptive Loading bit.ly/adaptive-angular Community bit.ly/adaptive-vue

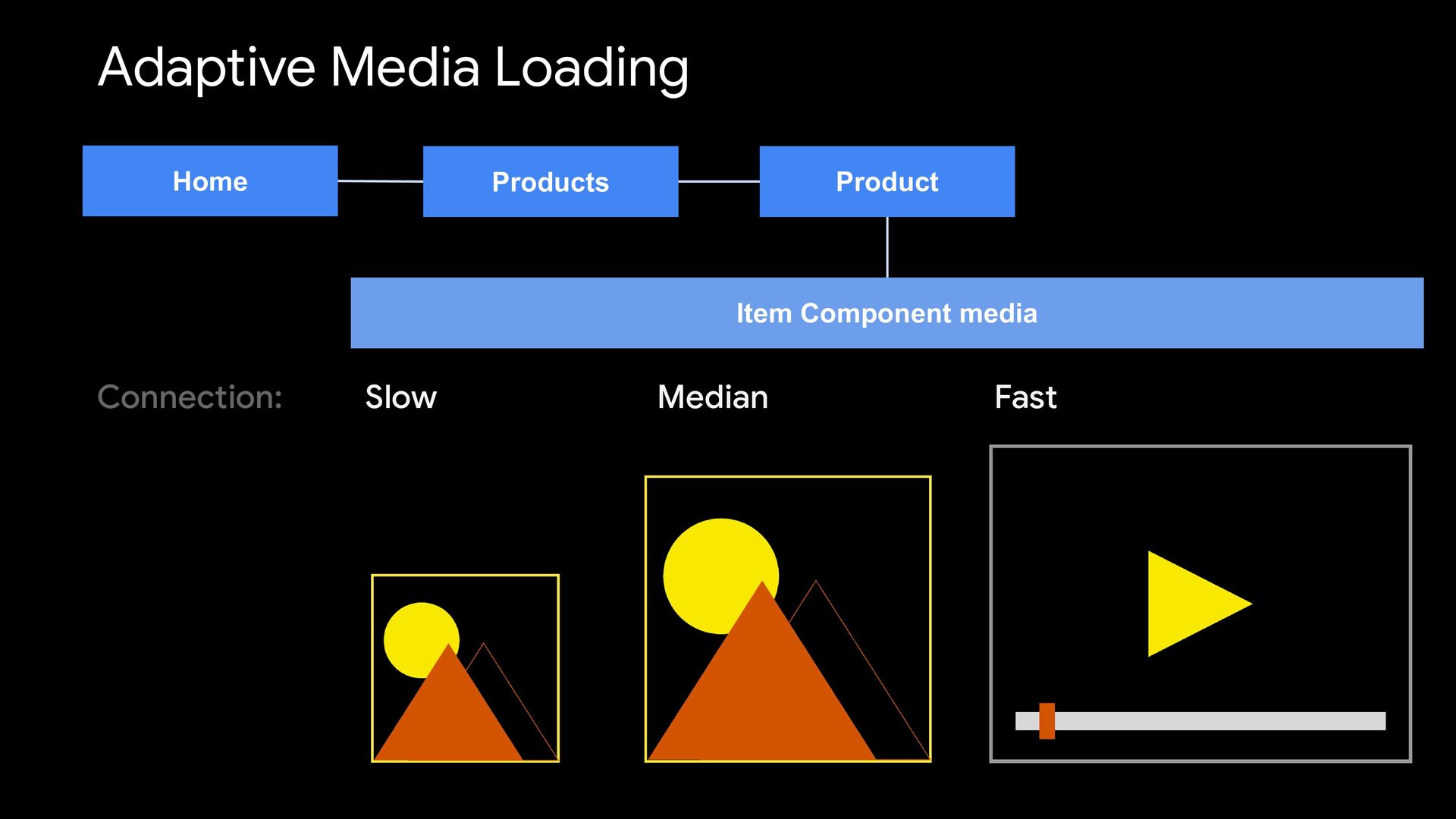

17. Home Products Product Item Component media Fast Adaptive Media Loading Slow Median Connection:
18. const network = navigator.connection.effectiveType; console.log ("Effective connection type is " + network); // 3g Network-aware Resource Loading import { useNetworkStatus } from './network'; const { effectiveConnectionType } = useNetworkStatus(); ... switch(effectiveConnectionType) { case '3g': media = <img src='low-res-image.jpg'/>; break; case '4g': media = <video muted controls><source src='video.mp4'></video>; break;
19. Demo Open demo
20. const saveData = navigator.connection.saveData; if (saveData) { // Don’t load heavy resources } Data-Saver aware Resource Loading import { useSaveData } from './save-data'; const { saveData } = useSaveData(); ... return ( <div> { saveData ? <img src='...' /> : <video> } </div>
21. Data Saver Mode For Images Reduction for data-usage from images on web. 96% incl disabled video autoplay 80% Twitter’s Data Saver mode presents images as a preview. The web renders a 64x64 blurred image (LQIP style). Users can tap to load large images. Previews load quick on 2G & 3G. Reduction for data-usage from images on iOS + Android 50%
22. Demo Open demo WPT
23. .image { background-image: url("original.webp"); } @media (prefers-reduced-data: reduce) { /* Save-Data: On */ .image { background-image: url("compressed.webp"); } } `prefers-reduced-data` bit.ly/csswg-prd Proposal
24. const memory = navigator.deviceMemory console.log ("Device has at least " + memory + "GB of RAM.") // Device has at least 4GB of RAM Memory-aware Resource Loading import { useMemoryStatus } from './memory'; const { deviceMemory } = useMemoryStatus(); ... return ( <div> { deviceMemory < 4 ? <img src='...' /> : <video> } </div>

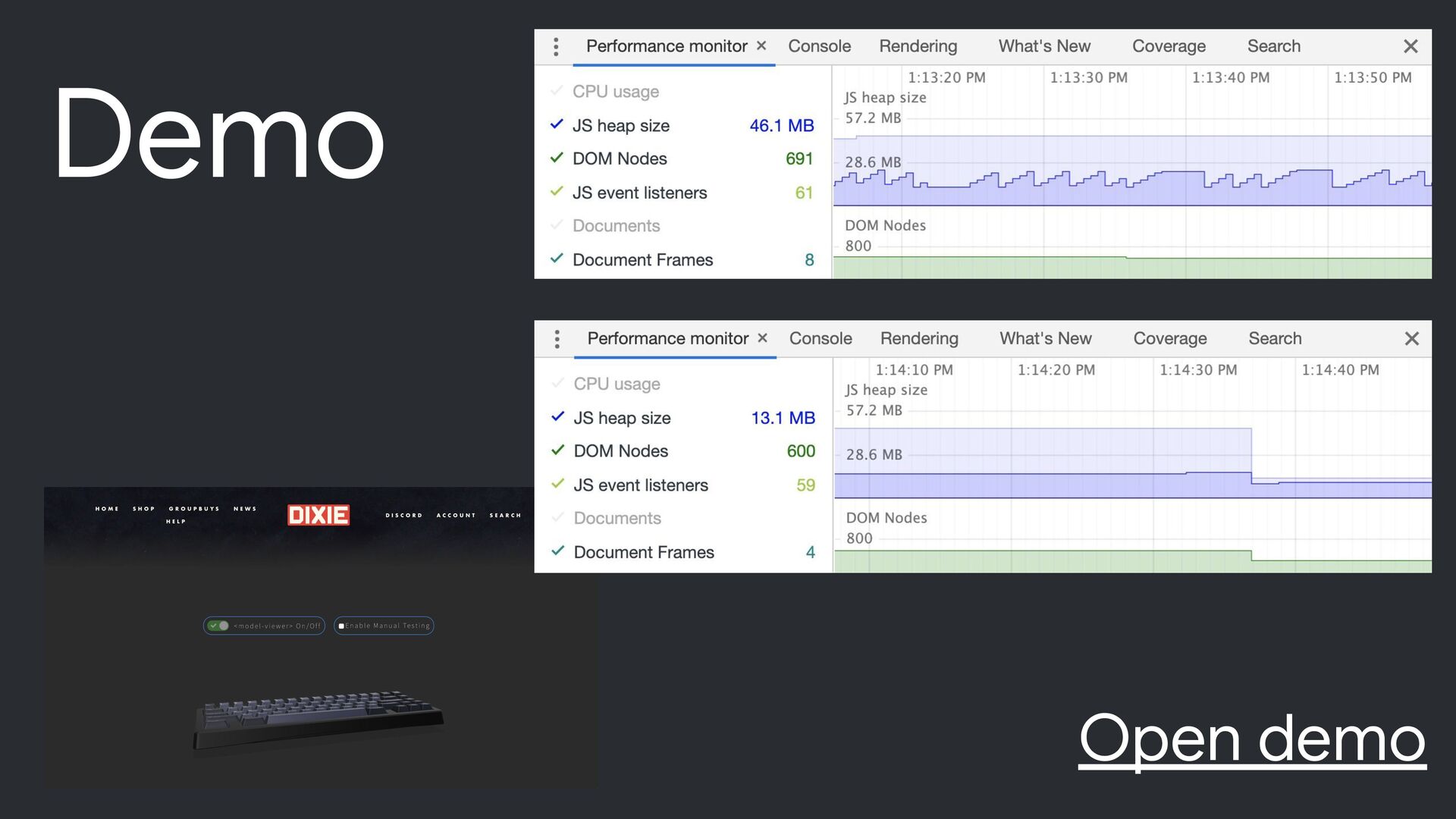

25. Demo Open demo
26. Page Request Check Device Class & Network Module Server responds zoom.js related.js cart.js “Lite” core experience for everyone High-end only features Adaptive Module Serving - The Future? vendor.js magnifier.js modal.js ui_library.js utilities.js /product-page product.js videos.js AR.js
27. Home Products Product Item Component Image Viewer Zoom Carousel Image Viewer Low-end device High-end device Adaptive Code-splitting & Code-loading Core experience
28. import React, { Suspense } from 'react'; const Sample = React.lazy(() => import('./Sample')); function MyComponent() { return ( <div> <Suspense fallback={<div>Loading...</div>}> <Sample /> </Suspense> </div> ); } React.lazy() and Suspense
29. Network-aware Code-splitting import React, { Suspense } from 'react'; const myComponent = React.lazy(() => { return new Promise(resolve => { navigator.connection ? resolve(navigator.connection.effectiveType) : resolve(null) }).then((effectiveType) => { switch (effectiveType) { case "3g": return import(/* webpackChunkName: "light" */ "./Light.js"); break; case "4g": return import(/* webpackChunkName: "heavy" */ "./Full.js"); break;
30. Adaptive Serving Fast? Lazy-load more features, like zooming. Slow? Just load the core experience eBay are experimenting with adaptive serving using effectiveType. On a fast connection, features like product zooming will load on demand. On slow connections, they won’t.
31. Demo Open demo
32. const cores = window.navigator.hardwareConcurrency console.log ("# logical processor cores are " + cores) // 4 CPU Core-aware Resource Loading import { useHardwareConcurrency } from './hardware-concurrency'; const { numberOfLogicalProcessors } = useHardwareConcurrency(); return ( <div> { numberOfLogicalProcessors <= 4 ? <img src='...' /> : <video><source src='...'> } </div>
33. Home Products Product Fast connection Slow connection Adaptive Data-fetching & Pre-fetching GraphQL server Database Database Database 5 results 25 results
34. Disable video autoplay on slow networks Only prefetch in-viewport links on 4G if (!isOKConnection() || isDataSavingMode()) { // don't prefetch visible routes return; } Limit carousel image loads on Data Saver / 3G
35. High-end Low-end Adaptive Capability Toggling Static Low frame-rate animation Full-fidelity animation High frame-rate
36. Client Server Request client sends current Client Hints Adaptive Delivery with Client Hints Subsequent requests Accept-CH: Device-Memory,Save-Data,Viewport-Width Device-Memory: 4 Viewport-Width: 320 Save-Data: 1 <meta http-equiv="Accept-CH" content="Device-Memory, Viewport-Width, Save-Data"> Enable Added Response
37. Demo Open demo
38. User Agent String “Moto G4” “Single-core score: 684” Device Class Detection Device Name Detection Service RAM Device Class “Low-end” Geekbench CPU benchmarks Cores CPU score
40. Do not just respond based on screen size, adapt based on actual device hardware
41. Web device classification at Facebook
42. Web device classification at Facebook Define buckets
43. Web device classification at Facebook Define buckets Integrate buckets into logging
44. Web device classification at Facebook Define buckets Integrate buckets into logging Adapt loading based on buckets
45. On mobile we get the device name in the UA, so we can use the year class concept. Grouping Hardware On Mobile
46. “Mozilla/5.0 (Linux; Android 10; SM-G955U) AppleWebKit/537.36 (KHTML, like Gecko) Version/4.0 Chrome/79.0.0.0 Mobile Safari/537.36” “Mozilla/5.0 (Linux; Android 9; Pixel 3 XL) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/79.0.0.0 Mobile Safari/537.36” Mobile UserAgents tell us what the device is

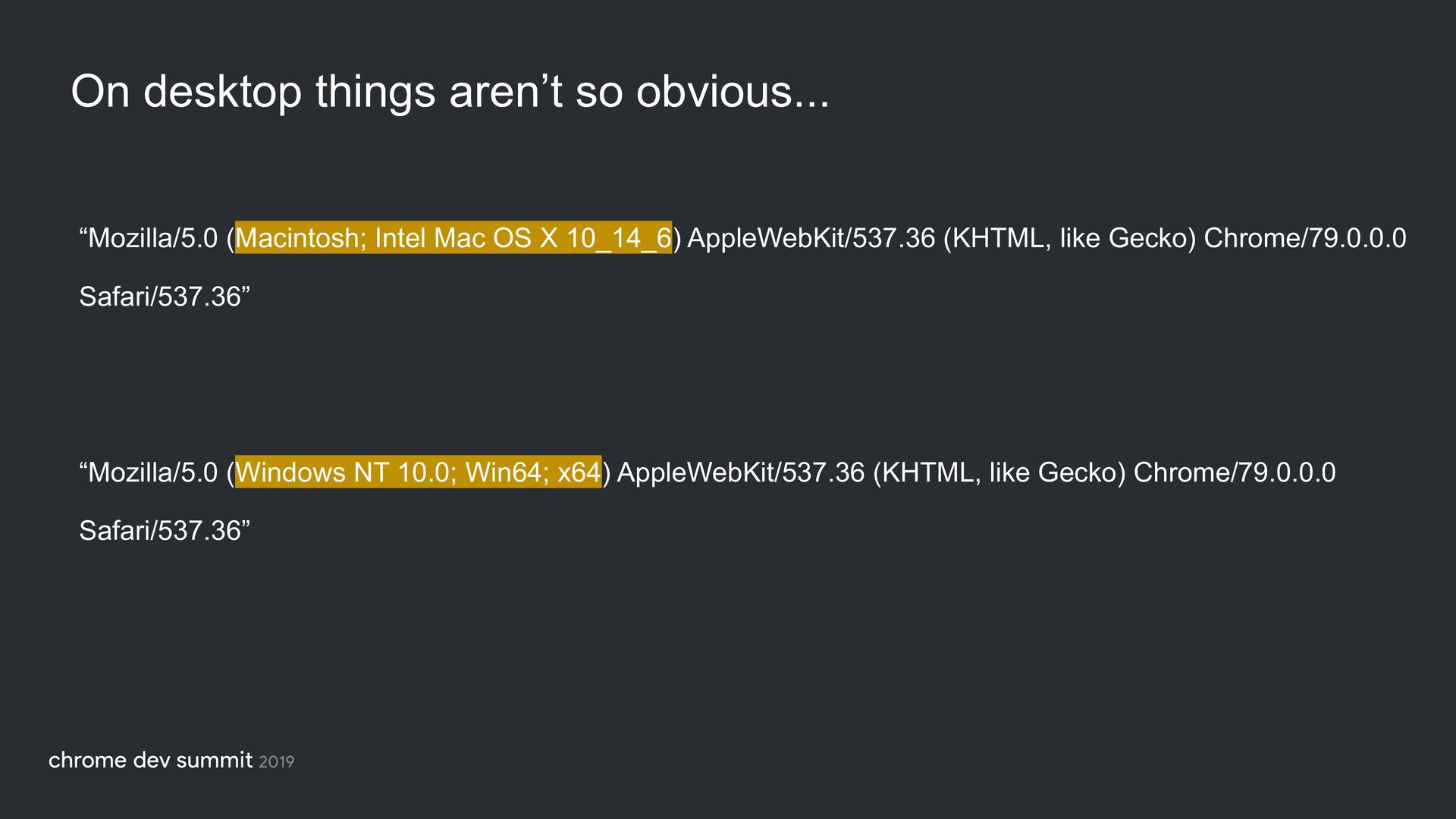

47. “Mozilla/5.0 (Macintosh; Intel Mac OS X 10_14_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/79.0.0.0 Safari/537.36” “Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/79.0.0.0 Safari/537.36” On desktop things aren’t so obvious...
48. • UA tells us OS, but not much else • What do we have? ◦ Most desktop browsers have: navigator.hardwareConcurrency ◦ Many desktop browsers have: navigator.deviceMemory Grouping Hardware on Desktop
49. Creating desktop hardware buckets
50. 1) Log hardwareConcurrency and deviceMemory
51. 1) Log hardwareConcurrency and deviceMemory 2) Group by hardwareConcurrency, deviceMemory and OS when looking at perf data
52. 1) Log hardwareConcurrency and deviceMemory 2) Group by hardwareConcurrency, deviceMemory and OS when looking at perf data
53. 1) Log hardwareConcurrency and deviceMemory 2) Group by hardwareConcurrency, deviceMemory and OS when looking at perf data 3) Figure out buckets based on groupings
54. When integrated into performance logging, hardware class reveals a more complete picture
56. Adaptivity should be considered in your core frameworks
57. Think about animations Low End High End
58. Mobile Websites
59. Load fast vs respond fast
60. if (isLowEndDevice()) { scheduler.unstable_forceFrameRate(15); }
61. isInputPending
62. Using consistent definitions for buckets in logging and adapting lets you easily see the full picture
63. Adaptive Loading Serve low-quality images & videos Conditionally load heavier JS on fast devices Avoid computationally heavy operations Turn off or throttle Animations Block 3rd-party scripts on slower devices
64. Make your site Lazy-First Reduce Defer Coalesce
65. Design your site with inclusivity in mind
66. Thank you! Addy Osmani Chrome @addyosmani Nate Schloss Facebook @n8schloss With special thanks to Anton Karlovskiy
